We are Authorised Dealer of HOFR Welding Cables, HOFR Cables, Welding Hose Pipes, Associate ISI HOFR Welding Cables, CO2 MIG Welding Wires and our setup is situated in Pune, Maharashtra, India.

HOFR CABLE


HOFR CABLE

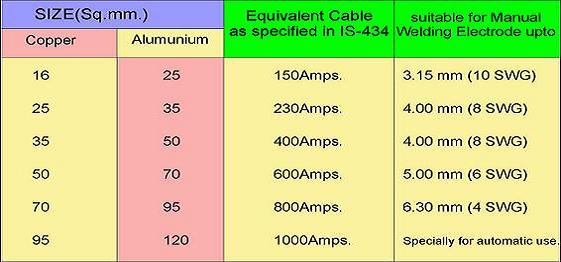

ASSOCIATE HOFR WELDING CABLES


ASSOCIATE HOFR WELDING CABLES

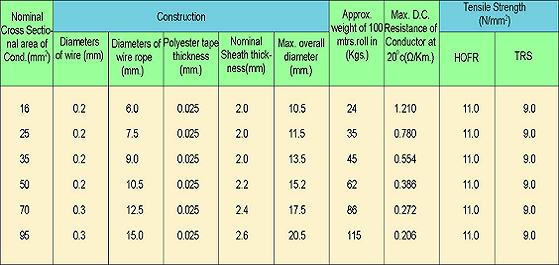

COPPER WELDING CABLE


COPPER WELDING CABLE

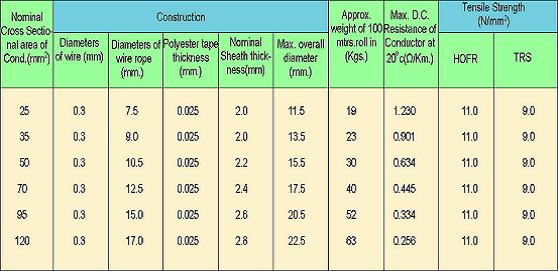

ALUMINIUM WELDING CABLE


ALUMINIUM WELDING CABLE

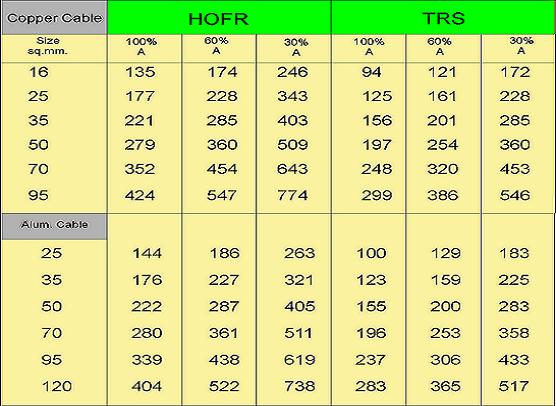

CURRENT CARRYING CAPACITY PERCENTAGE DUTY CYCLE


CURRENT CARRYING CAPACITY PERCENTAGE DUTY CYCLE

CURRENT CARRYING CAPACITY PERCENTAGE DUTY CYCLE


CURRENT CARRYING CAPACITY PERCENTAGE DUTY CYCLE

ASSOCIATE HOFR WELDING CABLE


ASSOCIATE HOFR WELDING CABLE

ADVANTAGE OF HOFR CABLE


Technical

  • High current carrying capacity (App.40 higher)
  • High conductor working temperature
  • More durable (life is more then double)
  • It is heat resisting oil resisting & flame retardant

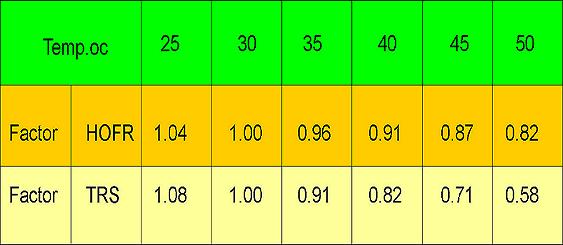

  • Low current derating factor at high ambient temperature
  • Better insulation properties.
  • Tough

financaial

  • Economical ( 10% to 30%) for equivalent current carrying capacity.
  • Economical ( 40% to 60%) for long run ( as life is double)
  • Inventory is less.

Others


  • Cable is light hence suitable for welder.
  • Frequent changes : is not required.
  • Saving of lugs as changes are less.
  • And many others.

    We are very sorry for those who use commercial cables for whom only the cost of cable irrespective of quality and standard and durability and effective use of cables the number of problems they face is better known to them and some may also do not know that where they are cheated, the common problems faced with this kind of commercial cables available at cheap rates in market are following:-

  • Less on of wires/cross section area not meeting standard.
  • Reduced gauge of wires.
  • Less quantity of copper.
  • Inferior quality of copper.
  • Degraded rubber of low quality.
  • Working not efficient
  • Cuts and joints in rubber inviting accidents and high losses of leakage current (remember you are paying for it) .
  • frequent breakdown /changes.
  • high lead time as no of times in new cable is needed to be replaced .it stops and affect the whole working process.
  • no faith in cable/user is always annoyed.

ASSOCIATE HOFR WELDING CABLES

ASSOCIATE HOFR WELDING CABLES

Features:

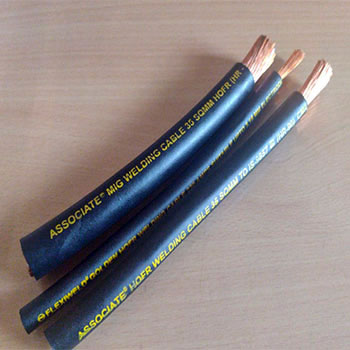

We offer premium quality MGI Welding Cables Fabricated by using qualitative MGI cable and Conform to the standards of the industry. The cable Encompasses polyurethane tube in the middle while Two Teflon wires are embedded in the conductor and covered with NBR-PVR synthetic rubber. Teflon wires act as switching cords. Conductors of varying sizes are used as per the required current carrying capacity.

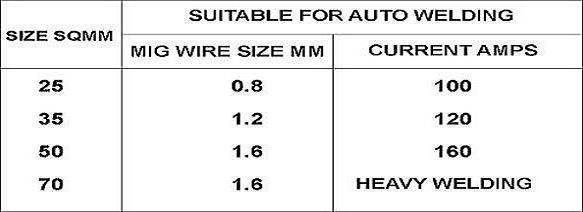

ASSOCIATE MGI CABLE BUNCHED COPPER WIRE ALONG WITH 2 OR 3 TEFLON WIRE CABLE ( SWITCH CORD ) LAYED AROUND PUTUBE BINDED WITH POLYESTER TAPE AND OVER ALL HOFR SHEATH.

Features

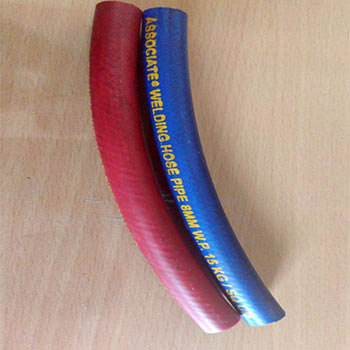

WELDING HOSE PIPE

Some applications in High Pressure Gas Welding Hose requires long running lengths of the Hose along the ground and also at vertical heights with fuel gas and oxygen cylinders lying on the ground. Such conditions require extra pressure bearing capacity and at the same time better flexibility in the hose. We offer these features in this class of high pressure gas welding hose.

Features

Special features:

  • Minimum to negligible expansion of the hose diameter under working pressure with busting pressure four times the WP.
  • High Flexibility in the Hose at low temperatures.
  • Dimensional stability at high temperatures.
  • Low weight per meter of the Hose makes easier handling.
  • Inner layer Black Color and outer surface in Red, Blue or Black Color.
