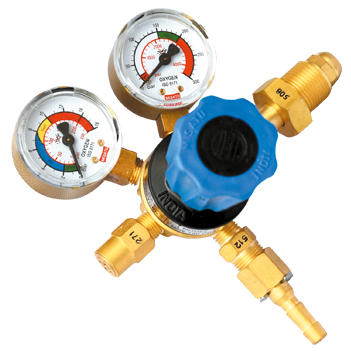

"M" Series Single Stage

These general purpose single stage regulators are recommended for inert and non-corrosive gas applications where precise control of delivery pressure is not necessary. They are well suited. Where constant delivery pressure regardless of fluctuations in cylinder pressure are required.


Optional Needle Valve :

  • Body : Forged Brass
  • Stem : Stainless Steel
  • Packing : Teflon




Sharparc



Regulator Feature

  • Designed for easy maintainance
  • No metal to metal seat in nozzle for easy opening & closing
  • All component machined on CNC machine
  • All components are ultrasonicaly cleaned, also polishing & deburring in finishing machine.
  • Weated are spring & poppet (pin) made from stainless stell to avoide rusting.
  • Pressure key made from stainless steel & roll threaded to avoide wornout bonnet thered.
  • Gas filteration with stainless steel wiremesh twice from inlet to restrict dust particle to enter.

Materials Of Construction

  • Body : Forged Brass
  • Bonet : Al.Pres.Dies Cast/Forged Brass
  • Diaphragm : Reinforced Neoprene Rubber
  • Nozzle : Brass
  • Seat : PTFE
  • Filter : Stainess Steel Wire Mesh
  • Seat Return Spring : Stainless Steel
  • Bonnet Spring : Spring Steel Plated
  • Adjusting Knob : ABS with Stainless Steel Screw

Technical Data Sheet

Gas Service Model Model For Flow Meter Cylinder* Delivery Connections*
      PRESSURE BAR GUAGE RANGE BAR PRESSURE BAR GUAGE RANGE BAR INLET OUTLET
DISSOLVED ACETYLENE MDA015CDS   18 0-40 0-1.5 0-2.5 G 5/8 LH MALE G 3/8 LH MALE
HYDROGEN MHY100CDS MHY035CDS 150 0-300 0-10
0-4.0
0-16
0-7
G 5/8 LH MALE G 3/8 LH MALE
CARBON DIOXIDE MCD100CDS MCD035CDS 80 0-300 0-10
0-4.0
0-16
0-7
W 21.8X14 RH FEMALE G 3/8 RH MALE
AIR MCA100CDS   150 0-300 0-10 0-16 G 7/8 RH FEMALE G 3/8 RH MALE
ARGON
HELIUM
NITROGEN
#MAR100CDS
#MHE100CDS
#MNI100CDS
MAR035CDS
MAR035CDS
MNI035CDS
150 0-300 0-4.0
#0-10
0-7
#0-16
G 3/4 RH FEMALE G 3/8 RH MALE
OXYGEN MOX100CDS MOX035CDS 150 0-300 0-10
0-4.0
0-16
0-7
G 5/8 RH MALE G 3/8 RH MALE
*ALSO AS PER CUSTOMER REQUIREMENT - + AVAILABLE GUAGE RANGE 400 BAR FOR PRESSURE 200 BAR
INLET - IS 3224 : 2002 | OUTLET - ISO / TR 70740 : 1998
1 bar = 14.504 psi = 1.0197 kgf/cm2 | 1 psi = 0.06894 bar = 0.07031 kgf/cm2 | 1 kgf/cm2 = 14.223 psi = 0.98068 bar


Application



Technical Data Sheet


BRAZING CALORIMETRY MAXIMUM INLET 4000 PSIG
CUTTING CHROMATOGRAPHY OUTLET RANGE 0-1.5 BAR
0-4.0 BAR
0-10 BAR
HEATING PROCESS CONTROL BODY PORT 1/4 NPT F
WELDING PURGING
BEVERAGES RESEARCH LAB.
