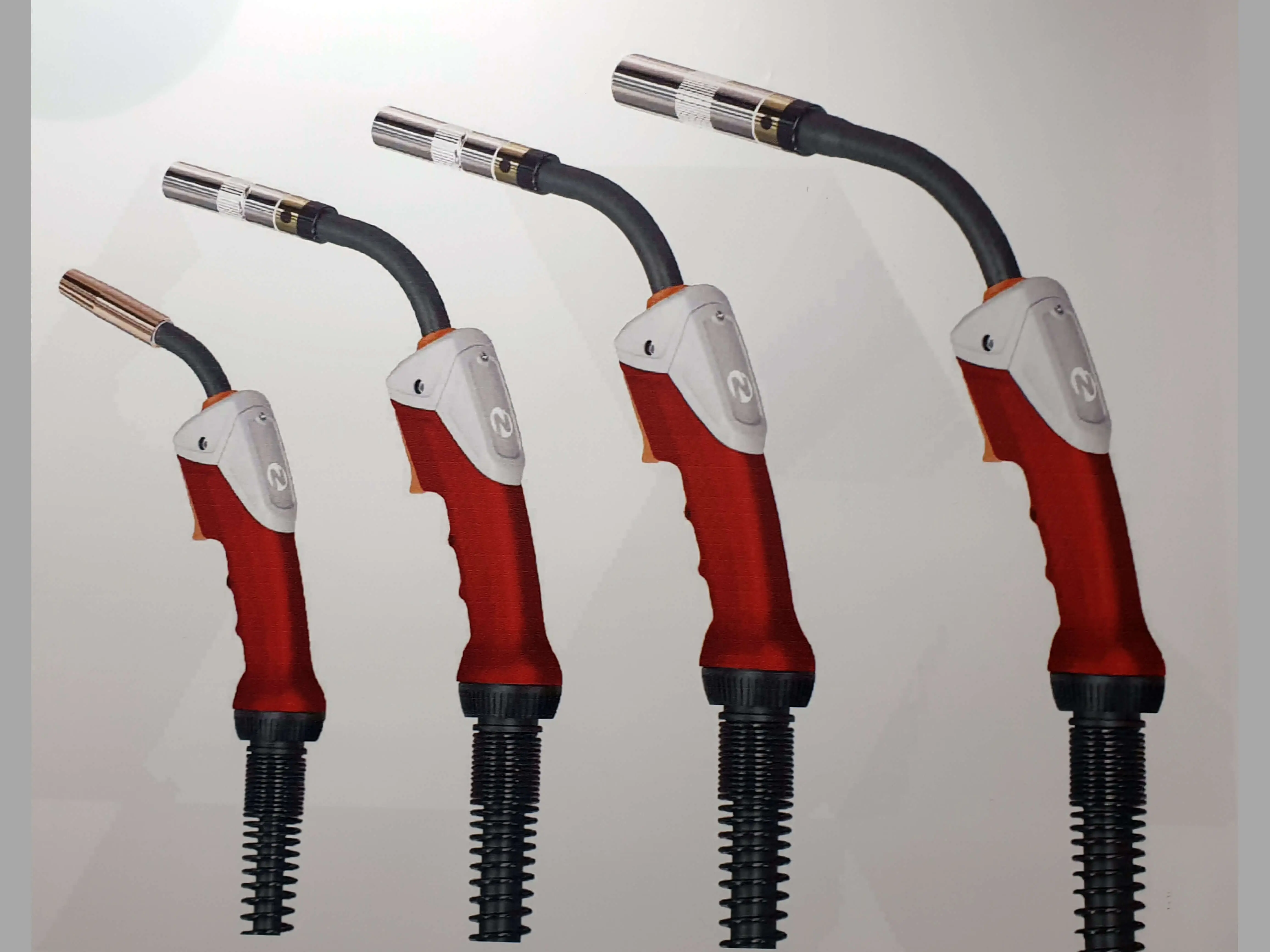

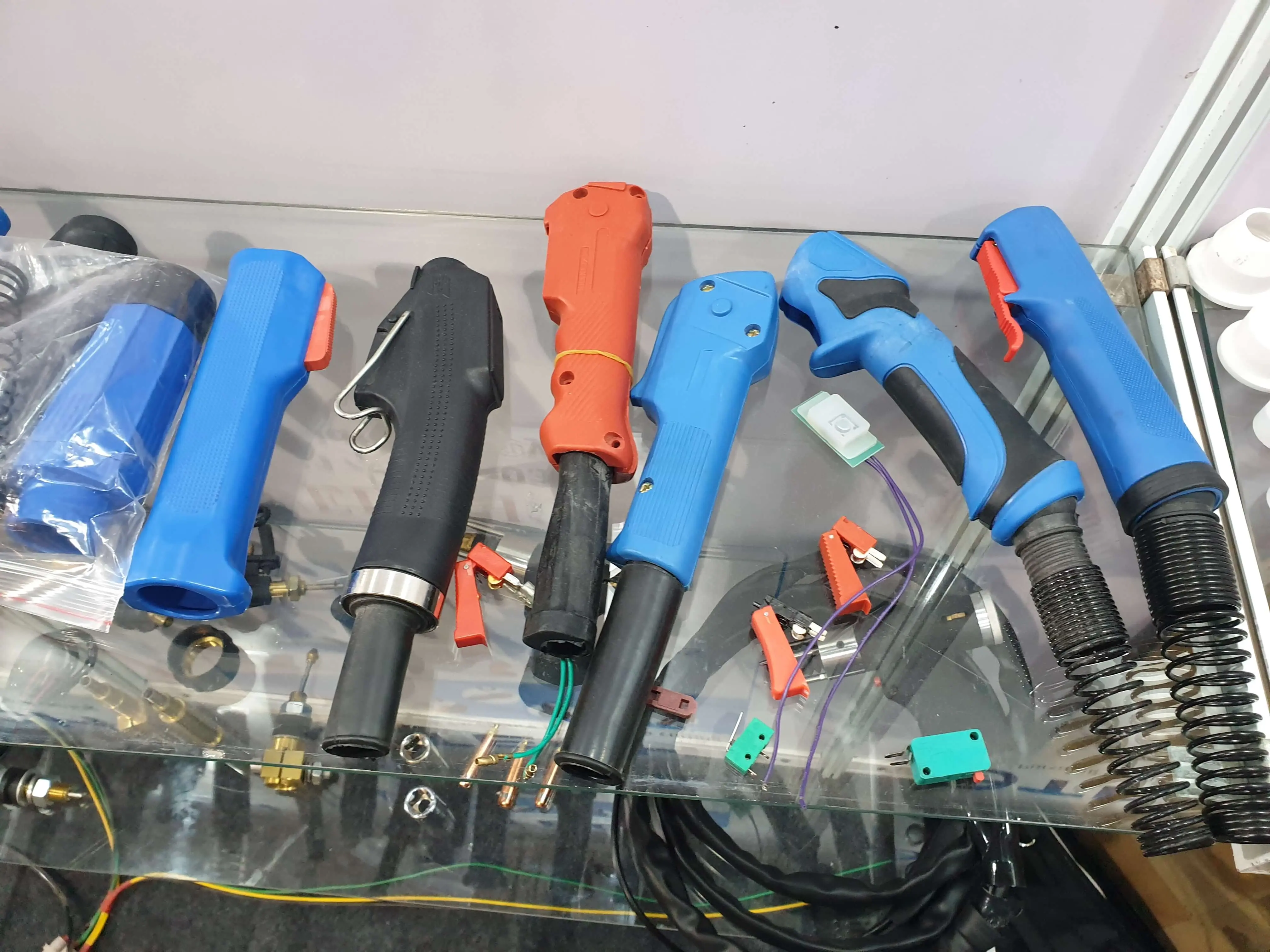

Co2 MIG Machines, Co2 TIG Machines, MIG Torches, Wire Feeders, Repairing Services of Welding Machines

Welding Services :

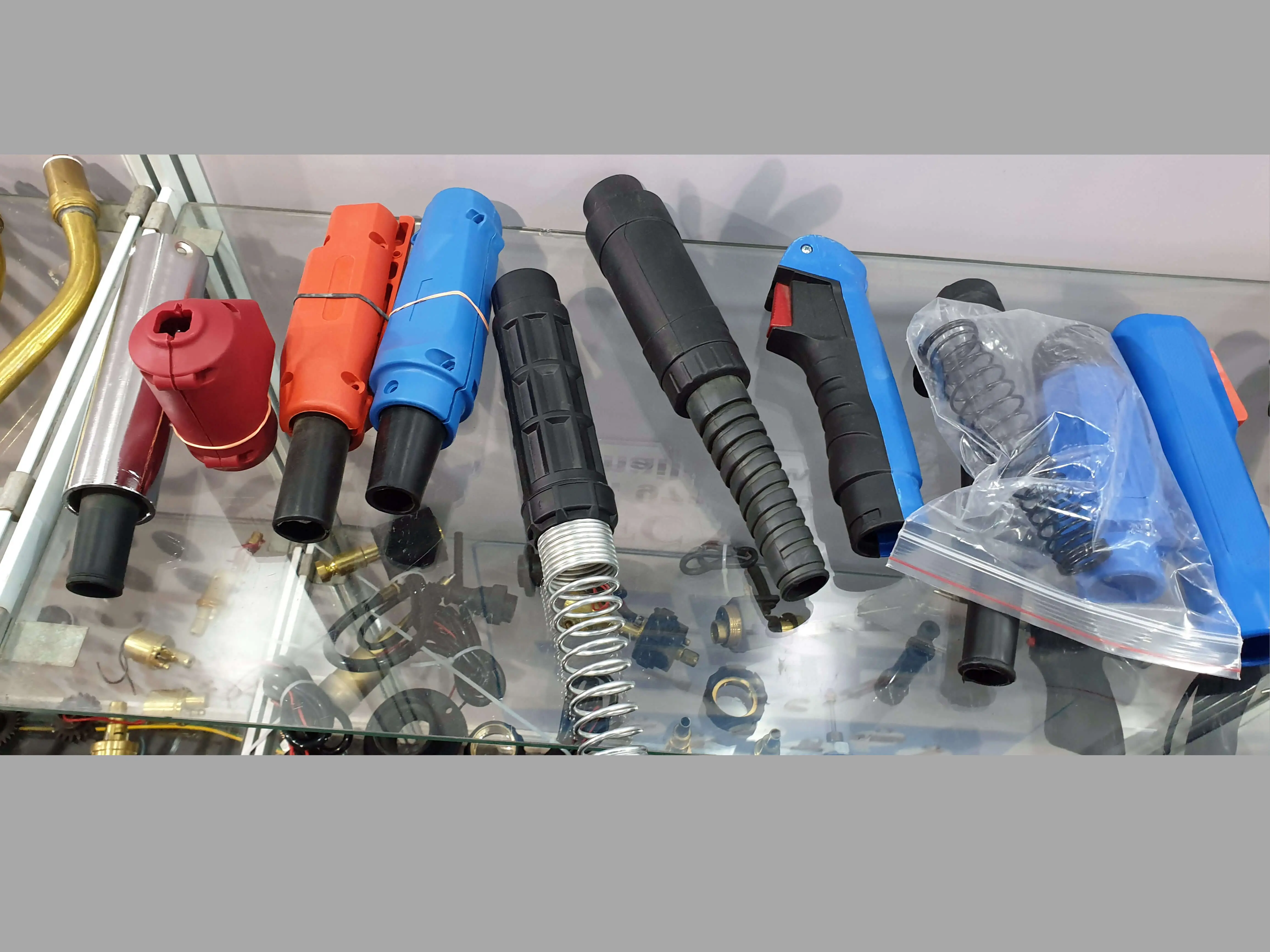

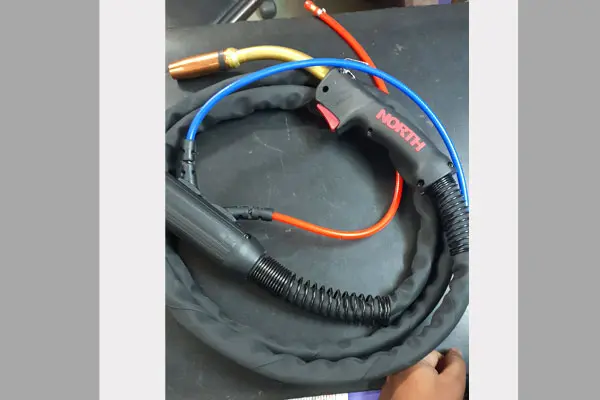

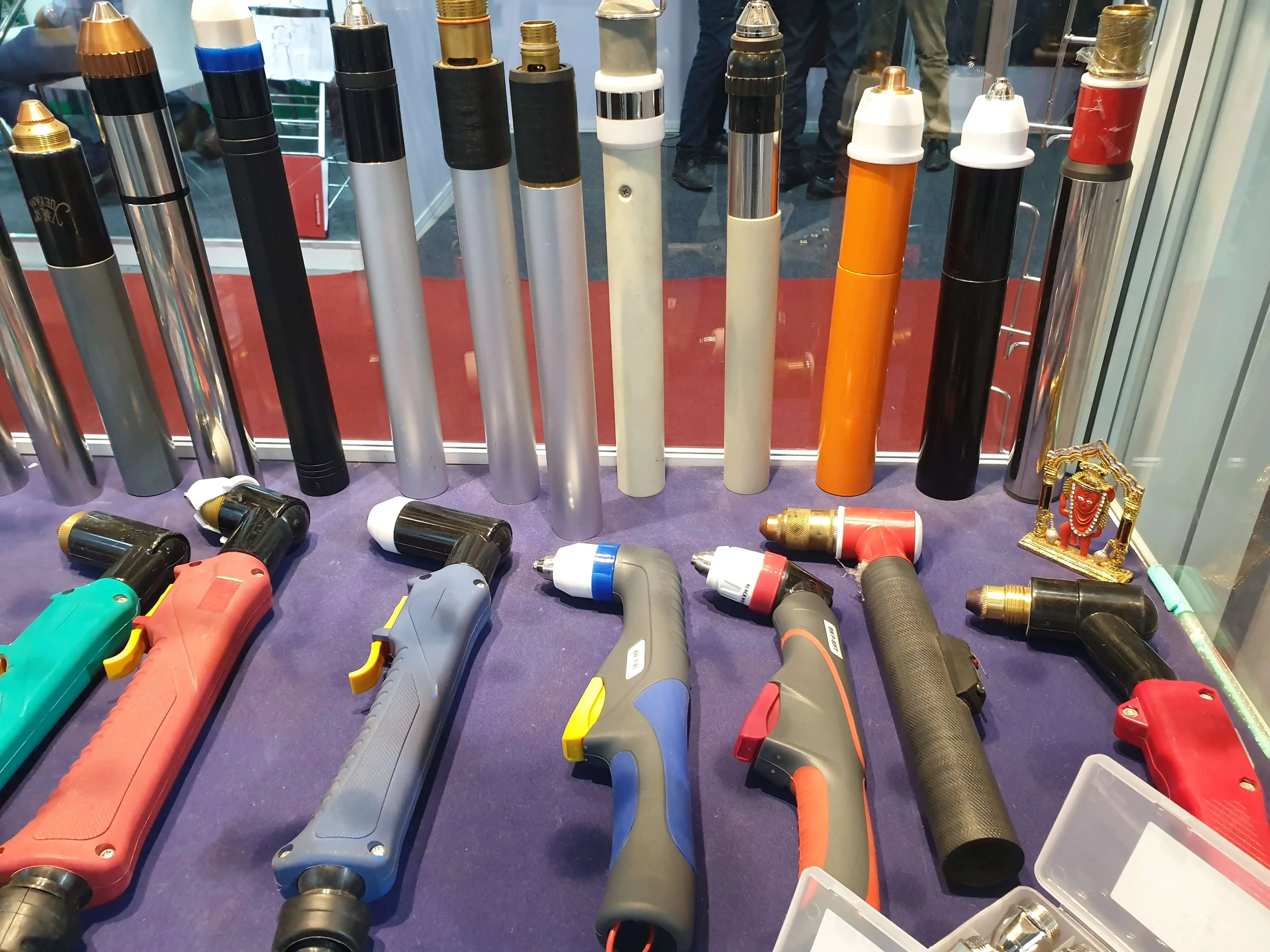

Manufactures of Co2 MIG / TIG Machine, MIG torches, Wire Feeder, SPM and Repairing Services of Welding Machines.

Special Features :

Class F insulation 100% copper transformer for reliable longer life

  • Agni make PMDC gearbox motors for smooth feeding.
  • AssociateŽ HOFR Welding & MIG cable for excellent arc current.
  • Good and consistent welding quality.
  • User friendly 2 Track / 4 Track operation provided.
  • For sheet metal welds down to 30 amps and 250/400 amps for general fabrication.
  • Can weld metals like Mild Steels, Stainless Steels, Aluminium etc. With appropriate consumables.
  • Single PCB feeder control card with 20 pin CPU connector for easy maintenance.

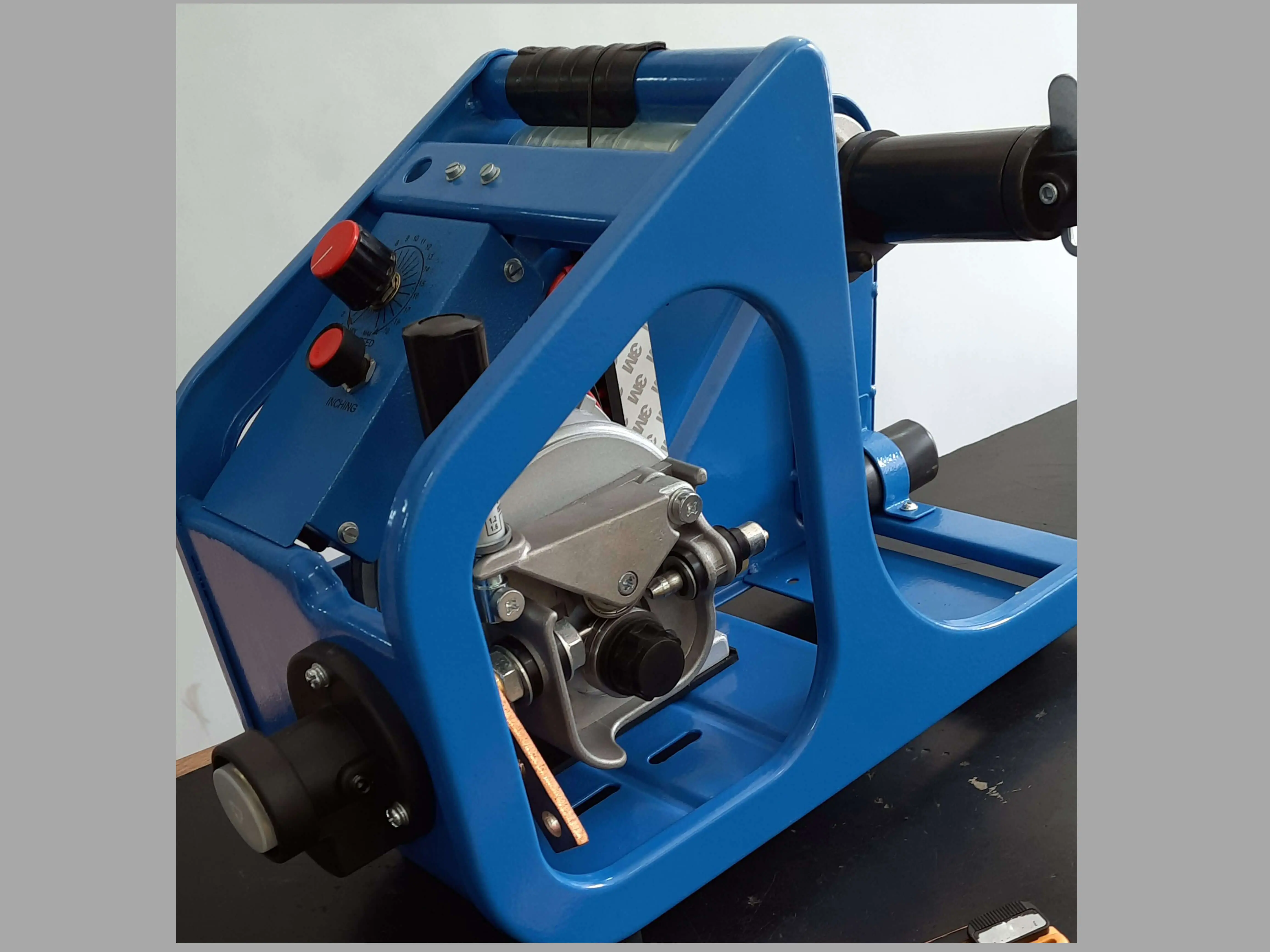

  • Optional Servo print motor Wire Feeder.

Technical Data :

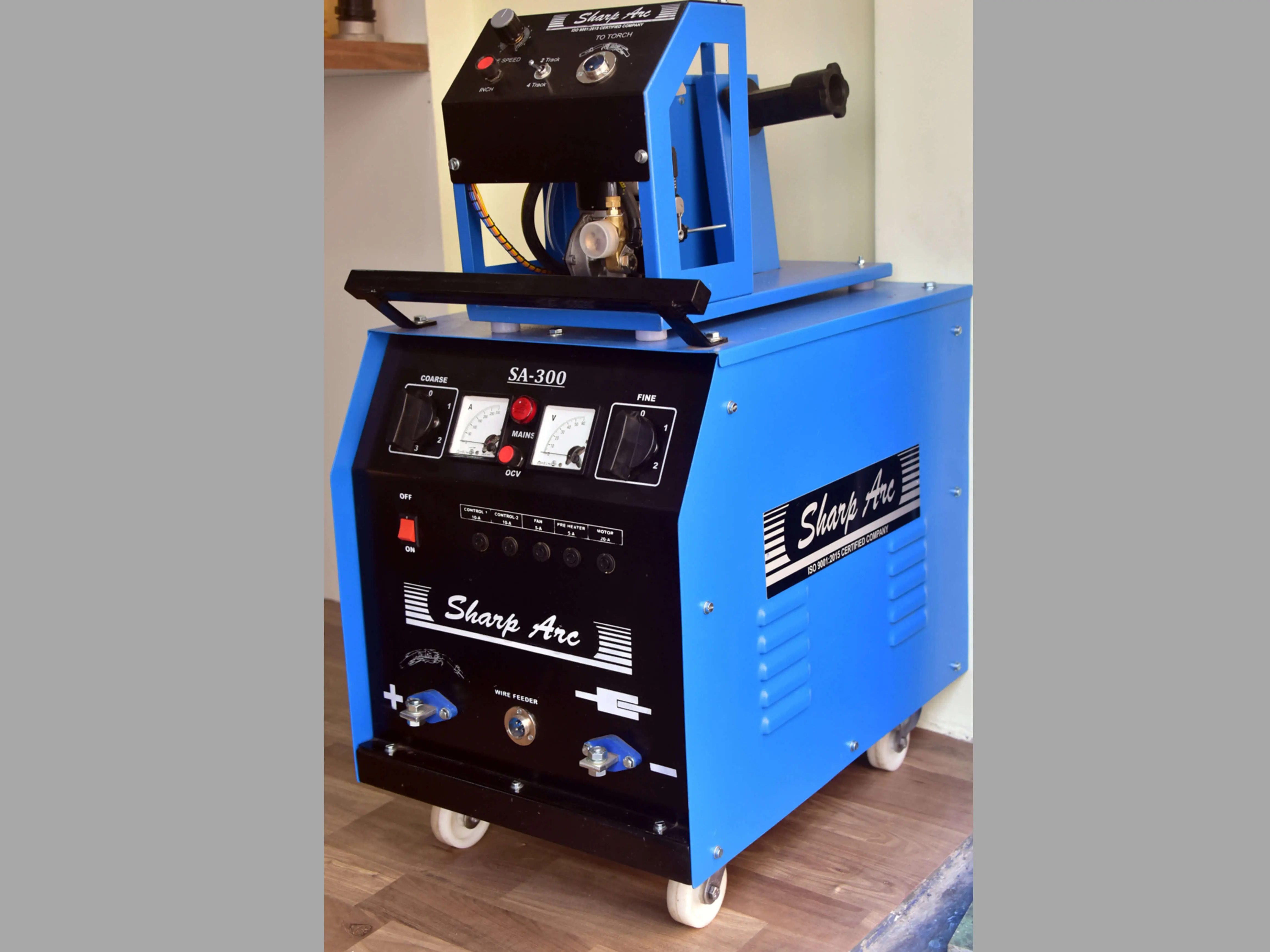

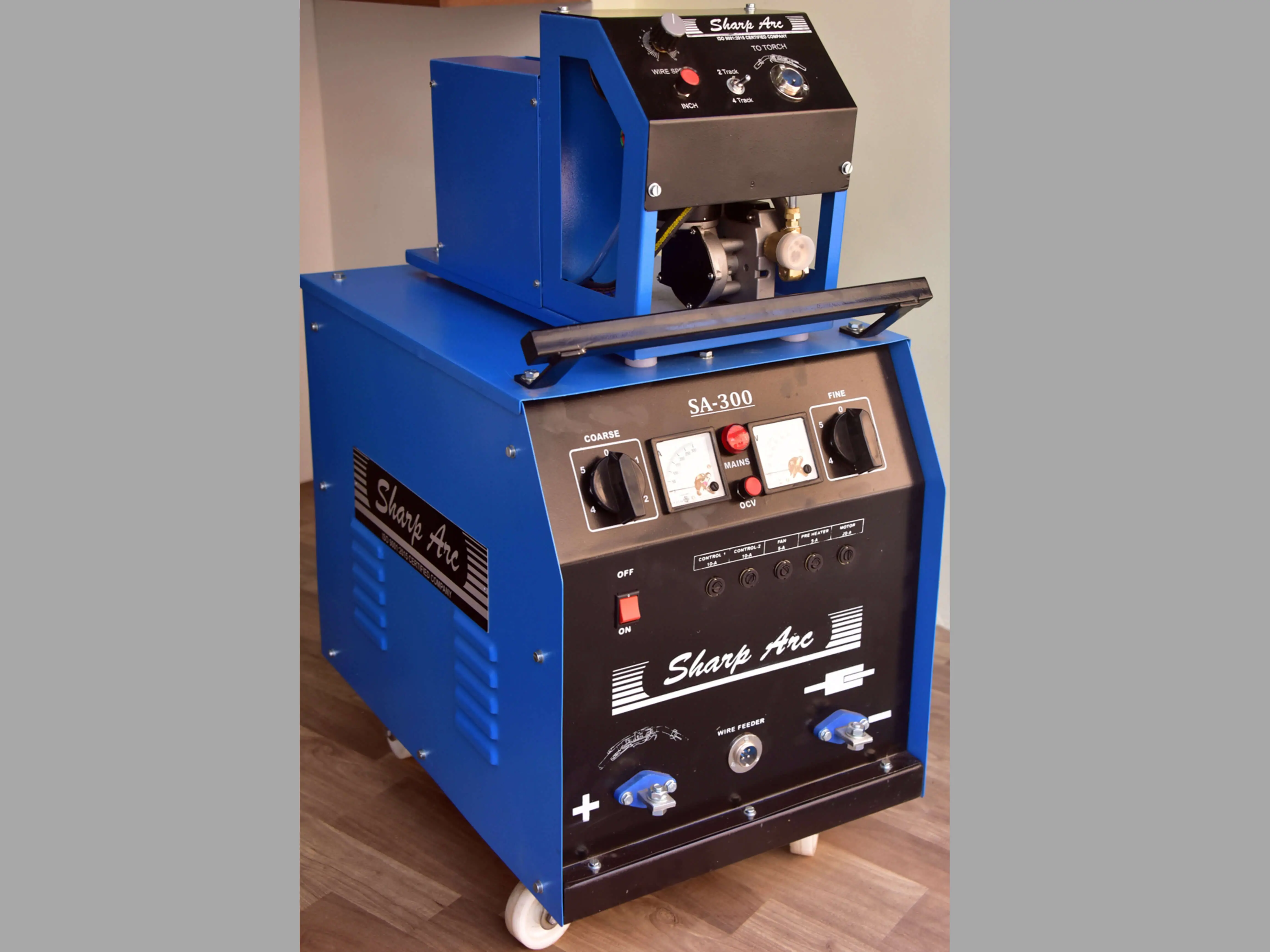

SHARP ARC-220 SHARP ARC- 300 SHARP ARC-340 SHARP ARC-400 SHARP ARC-600
INPUT SUPPLY 415V,3 P, 50 HZ 415V,3 P, 50 HZ 415V,3 P, 50 HZ 415\1,3 P, 50 HZ 415\1,3 P, 50 HZ
OPEN CIRCUIT VOLTAGE RANGE 16 TO 37V 16 T0 40V 17 T0 44V 17 T0 52V 14 T0 62 V
NO. OF VOLTAGE STEPS 25 25 30 30 36
MAX. CONT. CURRENT AT 6O% D.C 220 300 340 400 600
MAX. CONT. CURRENT AT 100% D.C 160 220 230 310 450
POWER RATING AT 60% D.C 8.0 KVA 12.0 KVA 15 KVA 20.0 KVA 23 KVA
POWER RATING AT 100% D.C 6.0 KVA 8.5 KVA 12 KVA 15.5 KVA 18 KVA
COOLING FORCED AIR FORCED AIR FORCED AIR FORCED AIR FORCED AIR
WIRE DRIVE CONTROL D.C.THYRISTOR D.C.THYRISTOR D.C.THYRISTOR D.C.THYRISTOR D.C.THYRISTOR
SUITABLE WIRES (STEEL) 0.8MM 0.8/1.2 MM 0.8/1.2 MM 0.8/1.2/1.6 MM 0.8/1.2/1.6 MM
SUITABLE WIRES (ALU) 1.2 MM 1.2 MM 1.2/1.6 MM 1.2/1.6 MM 1.2/1.6 MM
LENGTH X WIDTH X HEIGHT (SIZE) 640 x 440 x 450 800 x 460 x 600 800 x 480 x 550 800 x 480 x 550 ---

sharparc-12     sharparc-11     sharparc-9     sharparc-10

sharparc-10     Co2 Mig Machines     sharparc-5     Co2 Mig Machines-2

Co2 Mig Machines-12     Co2 Mig Machines-13 bsp;  sharparc-2     Co2 Mig Machines-7

Co2 Mig Machines-6    Co2 Mig Machines-4     Co2 Mig Machines-5     Co2 Mig Machines-16

Co2 Mig Machines-8     Co2 Mig Machines-9     sharparc-1     sharparc-4

sharparc-3     sharparc-8     sharparc-6     Welding Machines-4

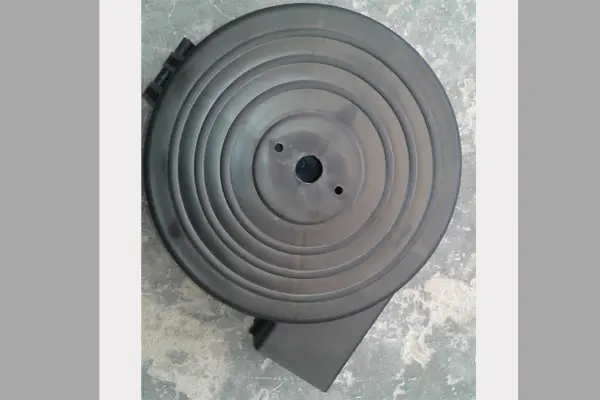

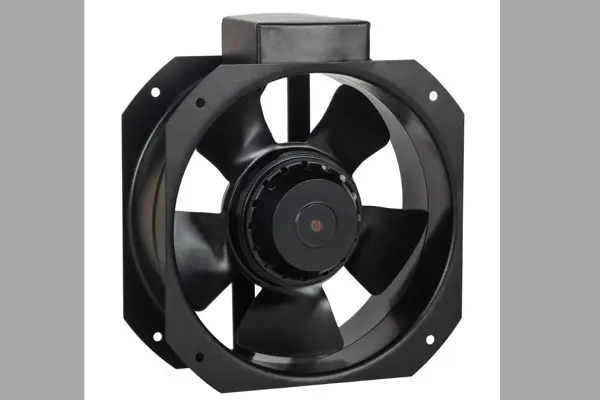

Welding Machines-7     Fan    Fan   Welding Machines-16

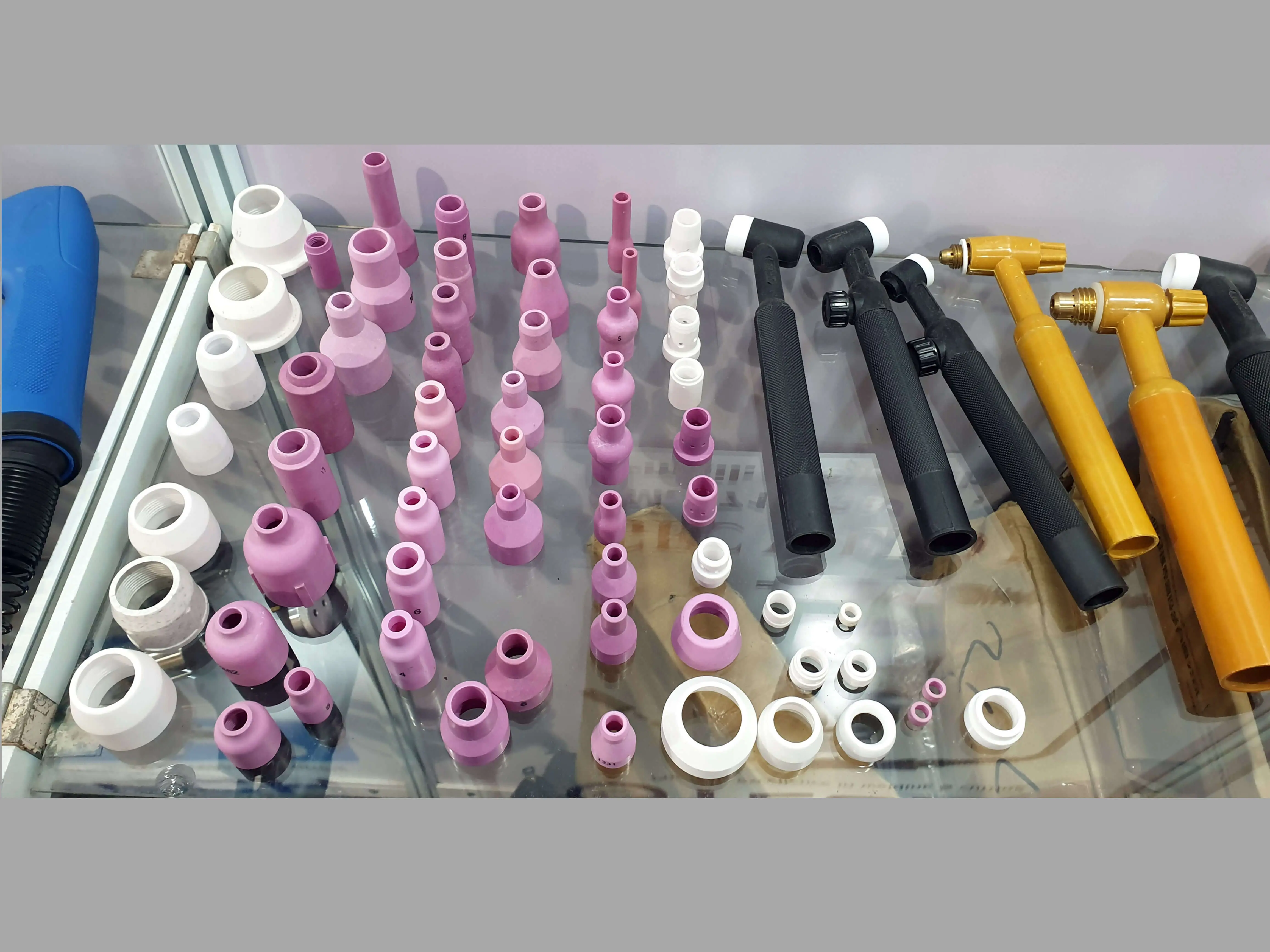

       Nozzle Gel        Welding Machines-13     Welding Machines-12
